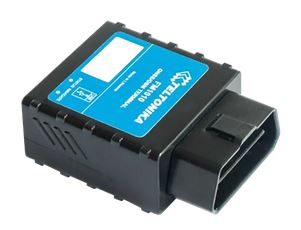

FM1010 to łatwy w obsłudze terminal śledzący w czasie rzeczywistym z łącznością GPS / GLONASS i GSM, który jest w stanie zbierać współrzędne urządzenia i inne przydatne dane w celu przesłania ich przez sieć GSM na serwer.
TECHNICAL DETAILS
GSM:
- Quad-band 900/1800 MHz; 850/1900 MHz
- GPRS class 10 (up to 85,6 kbps);
- SMS (text/data)
GPS/GLONASS
- NMEA protocol compatible. Messages: GGA, GGL, GSA, GSV, RMC, VTG, TXT
- 32 channel GPS/GLONASS receiver
- Up to -161 dBm sensitivity
Interface
- 1 Digital Input Reserved for Ignition Status Monitoring (depends on vehicle type)
- Accelerometer
- Power supply (+10…+16) VDC
- Integrated back-up battery (optional)
- Internal High Gain GSM antenna
- Internal High Gain GPS/GLONASS antenna
- Dimensions: L(50,7mm)xW(49,6mm)xH(25mm)
- 2 Status LEDs
- USB Port
- Configuration and firmware upload (FOTA and via USB cable)
Features
- Plug and Track
- Small and easy to mount case – directly to car OBDII connector
- Internal GSM antenna and Internal GPS/GLONASS antenna allow mount FM1010 much easier
- Real Time tracking
- Smart algorithm of data acquisition (time, distance, angle, ignition and event based)
- Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
- Smart algorithm of GPRS connections (GPRS traffic saving)
- Operating in roaming networks (preferred GSM providers list)
- Events on I/O detection and sending via GPRS or SMS.
- Scheduled 24 coordinates SMS sending when GPRS not available
- 5 geofence zones (rectangular or circle)
- Auto Geofencing crested for car towing detection and car theft prevention
- Deep Sleep mode (less than 2 mA power consumption)
- FOTA (firmware updating via GPRS)
- 3 operational modes (Home, Roaming, Unknown) based on operator
- Integrated scenarios:
- Over speeding to secure driver and prevent penalties
- Trip start and end detection
- FM1010 supports a remote logs reading
- FM1010 supports remote diagnostic logs functionality using GPRS. Possible issues resolving becomes faster . Manufacturer can read logs remotely using SMS/GPRS to diagnose the FM1010 and timely respond to the fault.
