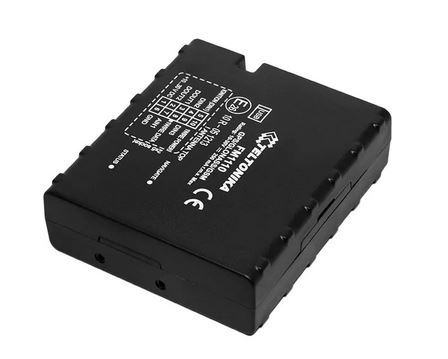

Mały lokalizator z wewnętrznymi antenami GPS / GSM.
TECHNICAL DETAILS:
GSM
- Quad-band 900/1800 MHz; 850/1900 MHz
- GPRS class 10 (up to 85,6 kbps);
- SMS (text/data)
- GPS/GLONASS
- NMEA protocol compatible. Messages: GGA, GGL, GSA, GSV, RMC, VTG, TXT
- 32 channel GPS/GLONASS receiver
- -161 dBm sensitivity
Interface
- 1 Digital Input Reserved for Ignition Status Monitoring
- 2 Digital Inputs
- 1 Analog Input (10V or 30V range)
- 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
- 1-Wire® protocol
- Power supply (+10…+30) V DC
- 2 Status LEDs
- USB Port
- Configuration and firmware upload (FOTA and via USB cable)
- Internal GSM antenna
- Internal GPS/GLONASS antenna
Features
- GPS/GLONASS and I/O data acquisition
- Real Time tracking
- Smart algorithm of data acquisition (time, distance, angle, ignition and event based)
- Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
- Smart algorithm of GPRS connections (GPRS traffic saving)
- Operating in roaming networks (preferred GSM providers list)
- Events on I/O detection and sending via GPRS or SMS.
- Scheduled 24 coordinates SMS sending
- 5 geofence zones (rectangular or circle)
- Deep Sleep mode (saving vehicle’s accumulator)
- FOTA (firmware updating via GPRS)
- Motion sensor
- Small and easy to mount case
- Roaming dependant operation (GPRS traffic saving in roaming zones)
- Operation mode presets:
- Advanced overspeeding detection
- Driver identification (1-Wire® iButton ID key)
