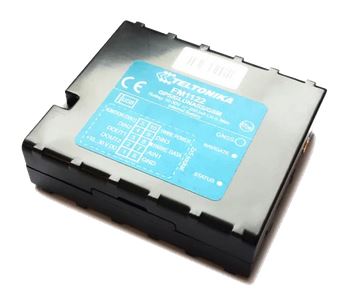

FM1122 to lekki terminal śledzący w czasie rzeczywistym z łącznością GPS / GLONASS i GSM, który jest w stanie zbierać współrzędne urządzenia i inne przydatne dane i przesyłać je przez sieć GSM na serwer.
TECHNICAL DETAILS:
GSM:
- Quad-band 900/1800 MHz; 850/1900 MHz
- GPRS class 10 (up to 85,6 kbps);
- SMS (text/data)
GPS/GLONASS:
- NMEA protocol compatible. Messages: GGA, GGL, GSA, GSV, RMC, VTG, TXT
- 32 channel GPS/GLONASS receiver
- Not less than -160 dBm
Interface:
- 1 Digital Input Reserved for Ignition Status Monitoring
- 2 Digital Inputs
- 1 Analog Input (10V or 30V range)
- 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
- 1-Wire® temperature sensor
- 1-Wire® iButton
- Motion sensor
- Power supply (+10…+30) V DC
- Internal GSM antenna
- External GPS/GLONASS antenna
- Integrated backup battery
- 2 Status LEDs
- USB Port
- Configuration and firmware upload (FOTA and via USB cable)
Features:
- Small and easy to mount case
- Internal GSM antenna and External GPS/GLONASS antenna for easy mounting and best performance
- GPS/GLONASS and I/O data acquisition
- Real Time tracking
- Smart algorithm of data acquisition (time, distance, angle, ignition and event based)
- Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
- Smart algorithm of GPRS connections (GPRS traffic saving)
- Operating in roaming networks (preferred GSM providers list)
- Events on I/O detection and sending via GPRS or SMS.
- Scheduled 24 coordinates SMS sending
- 5 geofence zones (rectangular or circle)
- Auto Geofencing crested for car towing detection and car theft prevention
- Deep Sleep mode (less than 2 mA power consumption)
- FOTA (firmware updating via GPRS)
- 3 operational modes (Home, Roaming, Unknown) based on operator
- Integrated scenarios:
- Over speeding to secure driver and prevent penalties
- Immobilizer function
- Authorized driving (1-Wire® iButton ID keys up to 50 iButton keys)use to prevent stealing or indicate drivers
- Trip start and end detection
- FM1122 supports a remote logs reading
- FM1122 supports remote diagnostic logs functionality using GPRS. Possible issues resolving becomes faster . Manufacturer can read logs remotely using SMS/GPRS to diagnose the FM1122 and timely respond to the fault
