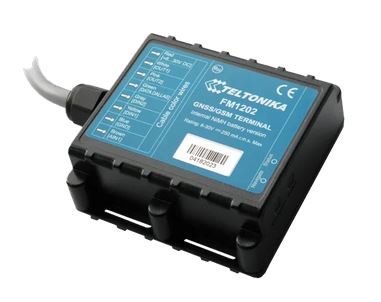

FM1202 to terminal z łącznością GPS i GSM, który jest w stanie określić współrzędne obiektu i przesłać je przez sieć GSM.
TECHNICAL DETAILS:
GSM:
- Quad-band 900/1800 MHz; 850/1900 MHz
- GPRS class 10 (up to 85,6 kbps);
- SMS (text/data)
GPS:
- NMEA, GGA, GGL, GSA, GSV, RMC, VTG protocol compatible
- 32 channel GPS/GLONASS receiver
- -161 dBm sensitivity
Interface:
- 1 Digital Input Reserved for Ignition Status Monitoring
- 2 Digital Inputs
- 1 Analog Input (10V or 30V range)
- 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
- 1-Wire® protocol
- Power supply (+6…+30)VDC
- 2 Status LEDs
- Configuration and firmware upload (FOTA and via cable)
Features:
- Hermetic enclose IP67
- Internal High Gain GSM antenna
- Internal High Gain GPS/GLONASS antenna
- GPS/GLONASS and I/O data acquisition
- Real Time tracking
- Smart data acquisition (based on time, distance, angle, ignition and events
- Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
- Smart algorithm of GPRS connections (GPRS traffic saving)
- Operating in roaming networks (preferred GSM providers list)
- Events on I/O detection and sending via GPRS or SMS.
- Scheduled 24 coordinates SMS sending
- 5 geofence zones (rectangular or circle)
- Deep Sleep mode (less power consumption)
- FOTA (firmware updating via GPRS)
- Motion sensor
- Small and easy to mount case
- 3 operational modes (Home, Roaming, Unknow) based on operator
- Operation mode presets:
- Advanced overspeeding detection
- Driver identification (1-Wire® iButton ID key)
