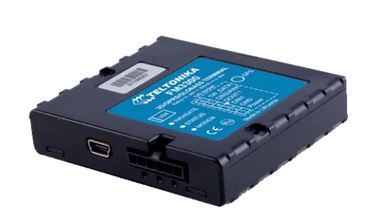

FM3300 to mały i łatwy w instalacji terminal. 2 konfiguracje sprzętowe wejścia / wyjścia pozwalają wybrać najlepszą dla Twoich aplikacji.
Technical details:
Supported frequencies (Mhz)
GSM/GPRS/EDGE: 800, 900, 1800, 1900 UMTS/HSPA: 800/850, 900, AWS1700, 1900, 2100
GNSS
NMEA, GGA, GGL, GSA, GSV, RMC, VTG protocol compatible 162 dBm Tracking Sensitivity 32 independent tracking/search channels
Interface
Two different input/output hardware configurations: First option POWER (10…30V DC) GND DIN1 (Reserved for Ignition Status Monitoring) DOUT1 DOUT2 DIN2/AIN1 (selectable by configuration Second option POWER (10…30V DC) GND DIN1 (Reserved for Ignition Status Monitoring) DOUT1 DIN2/AIN1 (selectable by configuration) 1-Wire® interface 3 Status LEDs USB Port Configuration and firmware upload (FOTA and via USB cable) External GSM antenna (SMA connector) for higher sensitivity External GNSS antenna (MCX connector) for higher sensitivity
Features
GNSS and I/O data acquisition Real Time Vehicle Tracking Smart data acquisition (based on time, distance, angle, ignition and events) Sending acquired data via 3G or GPRS (TCP/IP and UDP/IP protocols) Smart algorithm of 3G or GPRS connections (GPRS traffic saving) Operating in roaming networks (preferred GSM providers list) Events on I/O detection and sending via 3G, GPRS or SMS. Scheduled 24 coordinates SMS sending 5 Geofence zones (rectangular or circle) Deep Sleep mode (less power consumption) FOTA (firmware updating via GPRS) Accelerometer Small and easy to mount case 3 operational modes (Home, Roaming, Unknown) based on GSM operator Operation modes: Over Speeding Detection Harsh driving detection (harsh braking, harsh acceleration and harsh cornering) Driver identification (using 1-Wire® iButton, depends on output pins selection)
Additional features:
FM3300 has large internal Flash memory (16MB): Up to 100 350 records or data from up to 120 days using standard configuration (min. period=10min, min. distance=1km and all I/O elements enabled) can be stored on internal flash memory. There is a possibility to disable data sending while in Roaming and to store data on internal flash memory. Stored data will be sent to server when FM3300 will register to home operator. FM3300 can be used without a GSM connection: Additional function – Offline data logging – allows to download acquired data from FM3300 to PC via USB and later to upload it to TAVL server. This functionality helps to avoid high GPRS bills caused by expensive roaming operators and keep acquired data save until it is downloaded to PC. FM3300 can be used without a GSM connection.
