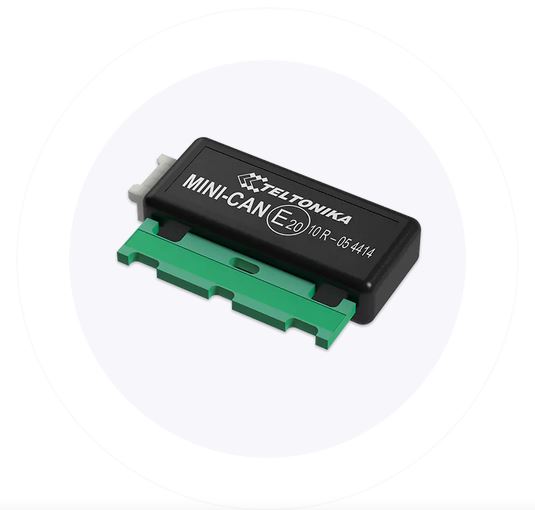

MINI CAN to niewielkie urządzenie, które łączy się z systemem magistrali CAN.
TECHNICAL DATA
Supported by LV-CAN200, ALL-CAN300, FM6300, FMB640, FMM640, FMC640 and FMB140
Input voltage range 9 – 63 V DC
Power consumption At 12V < 1.6 mA (Standby)
At 12V < 8.3 mA (Working)
Operating temperature range -40 °C to +85 °C
Operating humidity Max 85 % non-condensing
LED indication 1 status LED light
Features Contactless CAN reading
Warranty friendly
CAN-BUS speed from 33.33 to 500 kb/s
Automatically sets CAN Low, CAN High polarity
Automaticaly adjusts signal level and speed
Dimensions 40 x 18 x 14 mm (L x W x H)
Weight 9.1 g
